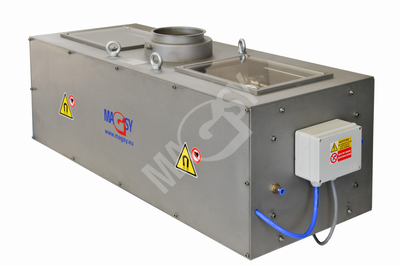

Plate-type magnetic separator MSP FAC

Benefits of the magnetic separator MSP FAC with an automatic cleaning system

• Cleaning process automation enhances the working productivity, it does not require operators, contributing thus to an elimination of potential cleaning interval neglecting, if given by the human factor. Last but not least, very good working safety should be noted.
• Using in operations characterized by a high frequency of ferromagnetic impurity occurrence.
• Adjustable cleaning interval, based on the quantity of impurities caught.
• Possibility of connecting onto the central controlling system (potential-less contacts as a standard, PROFINET or PROFIBUS as an option).
• Deep magnetic field, high tear-off force and magnetic induction.
• Using also in materials with poor bulk parameters, and in abrasive loose materials – insertion using abrasive-resistant polyurethane – quite comfortable in the food industry.
• In positions where the highest separation quality is required, or in situations where an elevated occurrence of very small ferromagnetic impurities is observed, a plate-type separator including 7 magnetic circuits was developed.
• It meets requirements of the norms for using in the food industry, e.g. EN 1935/2004.
• It is made of the stainless steel 1.4301, controlling elements have been produced by the renowned manufacturers FESTO, Siemens and Rittal.
• The device is ready for the pipeline systems DN 150/200/250/300. Using transitional elements, the connections may be adapted..
• Resistance, durability, assembling readiness. Putting into operation and personal training is a part of the supply, as an option.
• Service support directly on a place or, possibly, using a remote administration through a GSM module.
• Certificate of the magnetic parameters – as measured by calibrated devices and trained personnel. Regular yearly inspection and inspection measurements carried out by the MAGSY service department, directly in your company.

Industrial utilization area

1. Separation aimed at protection of manufacturing technologies

   In case of applications serving to a protection of manufacturing devices, MSP FAC separator is equipped with a ferrite magnetic core characterized by a deep and efficient magnetic field capable of catching even coarser magnetic impurities, protecting thus subsequent production devices. This way, the device contributes significantly to saving of the costs related to the maintenance and servicing activities.

1. Separation aimed at a product cleanliness

   In case the device is utilized in positions where the final product quality and safety must be secured, then the fully automated MSP FAC separator is equipped with a neodymium magnetic core achieving top-quality levels of the magnetic induction and tear-off force parameters. For positions where the highest separation quality is required, or where more frequent occurrence of very small ferromagnetic particles is expected, a plate-type separator including seven magnetic circuits was developed.

Size models

As a standard, MSP FAC product line is offered in the dimensions corresponding to the pipeline systems with the diameters of 150/200/250/300. For other dimensions or smaller diameters, installation using transitional elements is possible.

Connecting requirements

• Power supply – 230/16 A
• Pneumatics – pressurized air – 6 bar permanently

Separator safety and quality information

We care about the high quality of our magnetic separators

General technical specification

Magnetic equipment

• Ferrite magnets with a deep magnetic field design, or very strong NdFeB magnets protected by a plate made of the stainless steel 1.4301/1.4404

Temperature resistance of the magnetic material

• Anisotropic ferrite 200 °C/NdFeB, up to 80 °C as a standard – 120 °C, 150 °C as options

Magnetic output

• ferrite ca 2.100 G / 25 N on the core /// 1.800 G / 20 N on the contacting surface
• NdFeB ca 6.000 G / 80 N on the core /// 4.500 G / 60 N on the contacting surface

Separator material

• As a standard: stainless steel 1.4301 / AISI 304
• As an option: stainless steel 1.4404 / AISI 316 L (for acidic pH environments)

Pressure resistance

• Not designed for pressure pipelines

PLC – controlling

• Siemens

Pneumatic control elements

• FESTO

Distribution boards – pneumatic and electrical

• Rittal

Surface treatment

• Outer surfaces and the separator body: machine-blasted using a ceramics compound

Connecting elements

• As a standard: 150×150/200×200/250×250/300×300
• Based on your requirements, the connections may be carried out according to a specific position, using transitional elements
• For very dusty products it is recommended to make a connection the a de-dusting system – installation holes are prepared on the separator – DN 50 – smooth pipe

Sealing material

• As a standard: sealing meeting food industry requirements
• As an option: based on requirements

Optional functional accessories

• Insertion using an abrasive-resistant polyurethane
• Electrical and pneumatic controlling elements corresponding to ATEX 22 environment
• Intermediate pieces for an installation into another pipeline diameter
• Putting into operation and personnel training

Engineering workmanship

All engineering workmanship operations are performed using own production equipment and own MAGSY CZ engineering technology.

Component welds

They are performed according to requirements of technological standards valid for stainless material welding. Demanding outgoing weld inspection guaranties the high final product quality.
