Rotational magnetic separator MSVR – Standard

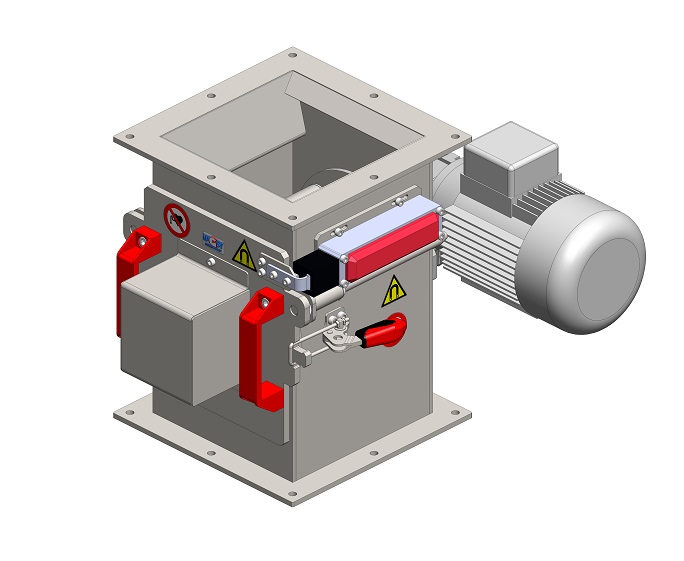

Magnetic separator MSVR – STANDARD is the basic and most used manually cleaned rotational magnetic separator type from the group of separators so far used in magnetic separation from hardly permeable loose mixtures.

More detailed information

Size models and the separator design

As a standard, MSVR STANDARD is manufactured for connecting into square pipelines. In case it is installed into a circular pipeline, suitable transitional elements from the square to circular pipeline must be supplied. Per your request, we would like to supply you those as well.

MSV Standard currently manufactured models and sizes:

For square pipelines with the dimensions of: 200×200; 250×250; 300×300; 350×350; 400×400 mm.

In case of customer requirements such as untypical mating dimensions, insufficient construction height, we will manufacture for you the MSV STANDARD dimensionally modified, according to your requirements, as a custom-made order.

Main benefits of the MSVR STANDARD separator:

  • Reliable separation – due to magnetic core rotation, perfect dropping labyrinth is formed
  • High separation level – by using the strongest NdFeB magnets and reduction the magnetic force loss due to the fact that magnetic core covering pipe was precisely machined to as small as possible thickness
  • Adjustable magnetic core equipment level, in the quality I or II
  • High engineering workmanship quality – we use the best materials, there is a high engineering workmanship precision, resistance, durability, assembling readiness
  • User friendly cleaning system – a system of covering pipes to be pulled out of the magnetic cores using ergonomic cleaning jig

Based on required magnetic separation level, technology protection or product protection, magnetic cores may be equipped with various magnetic circuit assemblies, namely on two standardized levels. Either there is preferred magnetic induction value, or the tear-off force value needs to be prioritized. According to these criteria, core composition on the levels I. to II is chosen.

A great advantage during the magnetic component cleaning consists in the fact that magnetic cores are not pulled out of the stainless steel covering pipes, but, in case of our STANDARD solution, covering pipes are pulled down from the magnetic cores. This has a good impact onto the maximum working safety increase during the magnetic separator cleaning – in this case, magnetic cores cannot be put aside spontaneously so there is no risk of injury given by magnetic core „attaching“ to steel objects.





MSVR – Standard – cleaning
MSVR – Standard – cleaning
MSVR – Standard – cleaning
MSVR – Standard – cleaning
MSVR – Standard – cleaning

MSVR STANDARD general technical specification

Magnetic equipment

  • Very strong NdFeB magnets placed in the covering pipes
  • Circular magnet outer Ø= 29 mm, pipe outer Ø= 31-32 mm according to the magnetic output required

Magnetic material temperature resistance

  • As a standard: up to 80 ˚C
  • As an option: up to 150 ˚C

 Magnetic outputn

Grate system

  • Rotational, pulling-out covering pipe, stationary magnetic cores – fixed

Dropping labyrinth

  • Due to the rotating component, the maximum dropping labyrinth is guaranteed

Case and magnetic component material

  • As a standard: stainless steel 1.4301 / AISI 304
  • As an option:  stainless steel 1.4404 / AISI 316L (in acidic pH environments)

Door sealing material

  • As a standard: rubber sealing in a quality corresponding to the separation task and operational conditions
  • As an option: food industry sealing conforming to the food industry norms

All materials are quality-certified according to EU standards.

Surface treatment

  • Outer case surfaces and grate frame: machine-blasted by a ceramics mixture
  • Outer grate pipe surface: machine-blasted, or polished as an option
  • Inner case surfaces are machine-blasted, in case of the food industry the corners and welds inside of the case are machined according to requirements of the food industry norms (as an option)

Connecting elements

  • As a standard: flange according to an appropriate pipeline dimensions
  • Counter-flanges are parts of the product supply

Engineering workmanship

  • Quality and precise engineering workmanship is guaranteed
  • All engineering operations are carried out using machines of the own production facility and own MAGSY CZ engineering technologies

Component welds

They are performed according to requirements of valid technological norms dealing with stainless steel material welding. Demanding outgoing weld quality control guarantees a high outgoing production quality.
